v3 — 01: The environment, the data, and V

The band, how often it hides the ball, and what a vision model can and cannot know about a ball it cannot see.

1. The environment change

One switch, BoxConfig.occluder, draws an opaque full-width band over the frame after the ball and paddle, using the same antialiased box coverage the paddle uses. Physics is untouched: with the same seed and actions the ball’s trajectory is identical with and without the band (asserted in the tests), and both v1 and v2 remain byte-identical under their own switches.

Two diagnostics were added, for grading only: a state column ball_visible (the fraction of the ball’s disc not covered by the band), and an event flag EVENT_HIDDEN for frames where the ball is fully hidden. The model never sees either.

Why the band is where it is. The ball’s diameter is 0.16 and the band is 0.30 tall, so the ball is fully hidden for about 0.14 / |v_y| frames — a design estimate of ~9, measured at 9.5. The band’s lower edge at 0.28 means a descending ball reappears only ~10 frames before it can reach the paddle, and the paddle needs ~30 frames to cross the box. A controller that waits to see the ball cannot catch it from far away; it has to move while the ball is hidden. That is what makes v3 a test of memory for the agent, not only for the dynamics model.

2. The data

Same collector, same policies as v1 and v2, --occluder on, mass off.

How much of the time is the ball hidden?

Every vertical traverse crosses the band, so occlusion is a dense event (~11 hidden runs per 200-step episode), and roughly one in six hidden runs contains a side-wall bounce that happens out of sight — the exit position then depends on a collision no frame ever showed. Those runs are the sharpest test of an internal simulation, and there are hundreds of them. The two taller bands exist for one purpose: to ask how long the model’s memory lasts.

runs/v3_env/occlusion_episode.gif shows one episode with a hidden wall bounce; hidden_run_lengths.png the run-length histograms for the three bands.

3. The v3 VAE

Same architecture and recipe as v1 and v2, trained from scratch on v3 frames (60 epochs, 30 minutes on the M1 GPU).

3.1 What it must and must not do

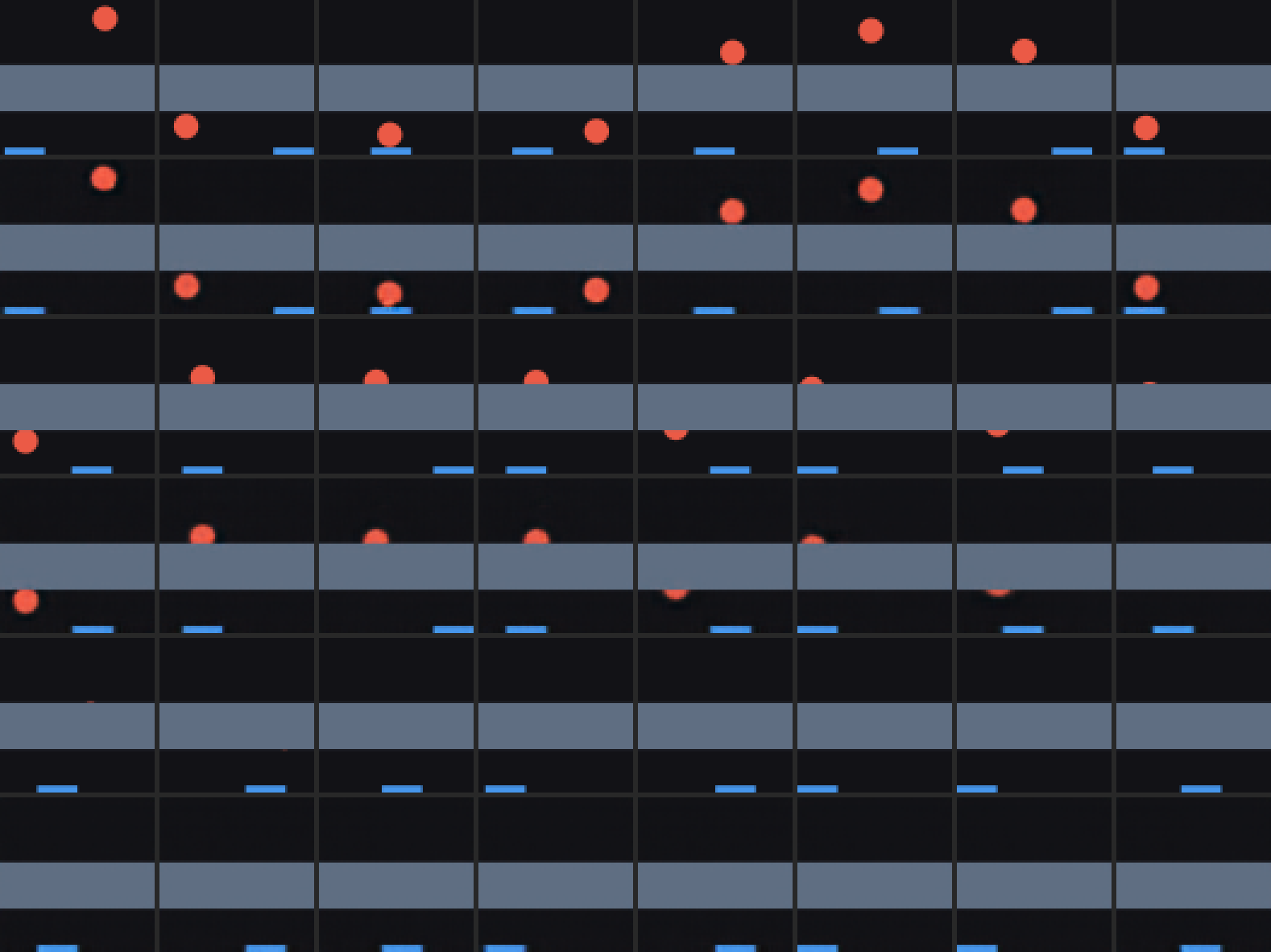

Real frames above, reconstructions below, in three blocks: fully visible balls, partially hidden balls, fully hidden balls. The band is rendered as static scenery. A partially covered ball is reconstructed as a partial ball in the right place, with the visible sliver’s shape preserved. On fully hidden frames the reconstruction shows no ball — which is what a well-calibrated model should do, since there is nothing in the frame to say where one is.

That last point was checked quantitatively as a hallucination rate: the ball-coloured pixel mass outside the band on fully hidden frames is 0.024 balls’ worth (against 1.02 on visible frames, and 0.001 on real hidden frames), and the single brightest ball-like pixel across 512 hidden frames is at 9.5% intensity. There is no hallucinated ball. This matters downstream: a VAE that painted a ball at its prior location on hidden frames would hand M a false observation to correct.

3.2 The probes, by visibility — the result this stage exists for

Held-out R² for ball position from μ, split by how much of the ball is in view:

Visible: as good as v1. Hidden: nothing, and correctly nothing — a frame with the ball behind the band is pixel-identical for every position behind the band, so no encoder could do better. (The hidden-frame ball_y rmse of 0.05 is small only because a hidden ball’s y is confined to the band; the negative R² says the probe does worse than the band’s midpoint.) The partial row is the interesting one: ball_y stays well recovered (a sliver’s height tells you where the edge crossed it) while ball_x degrades to 0.73 — a half-disc’s horizontal centre is genuinely harder to read.

This is the clean statement of v3’s problem. In v1 and v2 the current frame always pinned down the ball. Here, for a sixth of all frames, it does not, and for those frames anything the world model knows about the ball’s position it must have carried from earlier frames through its own dynamics. Stage M is graded on exactly that.

3.3 Two things that changed in the code, and one that did not

• Less information, fewer nats. Total KL fell from v1’s 14.4 to 11.9 nats, and strongly active dimensions from 9 to 6. Occlusion removes information from a sixth of frames and degrades it in another third, and the encoder’s information budget shrank accordingly. Unintuitive at first, then obviously right.
• The position code became more place-field-like. On visible frames kNN recovers position at 0.98 but a degree-2 polynomial only at 0.88 (v1: 0.98). The tuning maps show localised blobs with a pale stripe where the band is. A plausible reason: the band splits the plane into two regions, and nothing pushes the code to stay globally smooth across a gap it never has to represent. Untested — and worth watching, since a more localised latent may be harder for the MDN-RNN to step through.
• No visibility dimension. ball_visible is decodable from all of μ (R² 0.98) but from no single dimension (best 0.09). As with colour in v2, the new factor is distributed across the existing code rather than given an axis.

4. Summary for stage M

V does what it should and nothing it should not: sharp positions when the ball shows, honest silence when it does not, no hallucinations, and about one in six frames now carries zero information about the ball. Whether the world model knows where the ball is on those frames is now purely a question about h.

Next: 02 — the v3 dynamics model and the object-permanence tests.
