V3 stage two (“M”) — the dynamics model, and the object-permanence experiments

Technical log. Hardware: Apple M1, 8 GB, CPU. Interpreter python, every command from the repo root. The v3 VAE (runs/vae_v3/vae.pt, z_dim 16) was frozen and no dataset was modified. Read docs/v3/00_v3_design.md §3-M first, then README_V3.md for what stage one established.

The one-sentence question for stage two of v3: the frame contains no information about the ball for a sixth of every episode — does h carry the ball through the gap?

The answer, up front. Half of it, and it is a clean half. The recurrent model knows when the ball will come back and which side it will come out of: dreaming open-loop through a real occlusion it gets the exit time within two frames on 60 % of runs (mean error 3.2 frames) and the exit side right on 92 %, against a feed-forward control that manages 5 % and 41 % and simply never re-emerges a ball at all on 49 % of runs. On hidden frames h carries ball_vy at R² 0.67 and “how many frames have I been hidden” at R² 0.54, both at or below zero for the control. That is object permanence in the vertical: the model is running a clock and a falling ball behind the band.

It does not know where. Exit-x error is 0.159 world units for the recurrent model against 0.146 for a baseline that says “the ball is exactly where it vanished” — the model is worse than doing nothing, on the default band. ball_vx from h on hidden frames is R² −0.07. Flip the entry velocity in x and re-dream (experiment (e)) and the dreamed exit moves the right way only 55 % of the time, i.e. chance. The horizontal component of the state estimator is not there.

The one place the x memory shows up is long occlusions, and it is a real crossing: on the tall and taller bands, exit-x error stops growing with the occlusion length (0.131 → 0.144 → 0.196 → 0.203 over the 3–8 / 9–15 / 16–25 / 26+ frame bins) while the no-memory baseline grows linearly past it (0.069 → 0.141 → 0.237 → 0.361). The crossover is at about 13 hidden frames — longer than the default band’s mean occlusion of 9.4, which is exactly why the default band’s headline number is a loss. Read with the caveat in §7.3: at 26+ frames the model only produced an exit at all on 14 of 38 runs.

And the conservation verdict is bad, which matters for stage three. Across a dreamed occlusion the ball’s vertical direction of travel survives on 60 % of stretches at τ = 0 (instrument floor 99 %) and on 50 % at τ = 1 — a coin flip. Do not train a controller in a sampled v3 dream. Details and the recommendation in §8.

Scoring the M-stage predictions from docs/v3/00_v3_design.md §4

1. Files added or changed

Artifacts: runs/rnn_v3/, runs/rnn_v3_noact/, runs/rnn_v3_ff/, runs/rnn_v3_ms/, runs/rnn_v3/eval/, runs/rnn_v3/conservation/, runs/rnn_v3/permanence/, runs/rnn_v3_ms/{eval,conservation}/.

2. Commands, in order, with wall clock

All four trainings ran concurrently with OMP_NUM_THREADS=2, which is why the per-epoch times below are 2–4× the solo figure; the machine was saturated (load average 7–10 on 8 cores) for the whole 38 minutes.

# the four models -- 31 / 32 / 14 / 38 min wall clock, all four at once
COMMON="--data data/v3/train data/v3/train_mix --val data/v3/val data/v3/val_mix \
        --epochs 35 --eval-every 2"
python -m wm.train_rnn $COMMON --out runs/rnn_v3                                  # 1891 s
python -m wm.train_rnn $COMMON --out runs/rnn_v3_noact --ablate-actions           # 1907 s
python -m wm.train_rnn $COMMON --out runs/rnn_v3_ff    --feedforward              #  824 s
python -m wm.train_rnn $COMMON --out runs/rnn_v3_ms \
    --rollout-loss-steps 8 --rollout-loss-weight 1.0                              # 2261 s

# the standard evaluations -- ~3 min each
VAE="--vae runs/vae_v3/vae.pt --val data/v3/val data/v3/val_mix \
     --probe-data data/v3/probe data/v3/val_mix"
python -m wm.eval_rnn --ckpt runs/rnn_v3/rnn.pt $VAE \
    --ablate-ckpt runs/rnn_v3_noact/rnn.pt --out runs/rnn_v3/eval
python -m wm.eval_rnn --ckpt runs/rnn_v3_ms/rnn.pt $VAE --ablate-ckpt "" \
    --out runs/rnn_v3_ms/eval
python -m wm.eval_conservation --ckpt runs/rnn_v3/rnn.pt    $VAE --out runs/rnn_v3/conservation
python -m wm.eval_conservation --ckpt runs/rnn_v3_ms/rnn.pt $VAE --out runs/rnn_v3_ms/conservation

# the permanence suite -- 4 min, all three models in one pass
python -m wm.eval_permanence_v3 --out runs/rnn_v3/permanence

python -m pytest tests/ -q        # 89 passed in 14 s

--mass-head and --cons-loss-weight are off everywhere here: v3 has no mass. train_rnn now refuses them on a v3 dataset by name rather than by column count (§9).

3. Training

327k params for the three recurrent runs, 114k for the feed-forward one (no gates, no recurrent matrices). Training hit rate 0.759 %, pos_weight 130.8.

Three things to read off this table.

• The ff/RNN NLL gap is 2.27 nats and it is honest. Both models see the same latents, the same targets and the same heads, and NLL is in the same units. Recurrence is worth 2.27 nats per transition on a world where a sixth of the frames are blank — more than the action input is worth (1.04 nats), which is the first time in this project a control has beaten --ablate-actions for margin.
• The ff model peaked at epoch 23 and then got worse (6.240 at ep 23, 6.5–6.6 after). It is the only one of the four that overfits, which is what you expect from the one model that cannot use the extra information in the sequence and so has spare capacity for memorising.
• The multi-step loss costs 0.73 nats of teacher-forced NLL and buys almost nothing here. Its open-loop latent MSE is worse than the plain model’s (0.527 vs 0.450), which is the opposite of what it did in v2. See §10.1.

v3’s NLL is not comparable to v1’s 2.21 or v2’s 1.39: a different VAE means a different latent scale, and the MDN’s NLL is a density in that space.

4. The v1-style table, v3 against v1 and v2

30 val episodes, warm-up 8 true latents, horizon 64, true actions, frozen kNN position probe fit on data/v3/probe + data/v3/val_mix.

The dream horizon halving from 26 to 14 is the headline regression and it is mostly not a regression in the model. Three contributions, in order of size:

1. The occlusion itself. A dream that loses the ball for nine frames and re-emerges it two frames late has a large position error at the moment of re-emergence, and 17.6 % of frames are hidden.
2. The measuring instrument got worse, because it had to. The frozen kNN probe’s own error on TRUE latents is 0.0299 in ball_x unconditionally against v1’s 0.0040 — on a hidden frame there is nothing to read and the probe returns roughly the dataset mean. Conditioned on the ball being visible the same probe scores 0.0038, i.e. v1’s number. This is why eval_rnn now reports both, and why the unconditional horizon is 0: at h = 1 the mean ball error is already 0.085, larger than the ball radius, purely from the hidden frames in the average.
3. Genuine dynamics error. What is left after (1) and (2).

Everything else went up. PR-AUC on paddle contact 0.727 → 0.889 and wall bounces 24 % → 40 % (against a doubled chance level, so the lift is 2.1× rather than v1’s 2.2× — about the same). Velocity from h is down (0.918 → 0.670 in vx), which fits the story the rest of this document tells: vx is the component v3 damages.

A new row that only exists in v3: ball_visible is readable from h at R² 0.985 and from z at 0.976 (kNN). The model knows whether the ball is behind the band. That is the analogue of v2’s speed-from-colour: a quantity that is a deterministic function of a well-encoded one.

5. eval_rnn on an occluded world: what had to change

Nothing about the dynamics, one thing about the ruler. part_b_state now takes the ball_visible column (by name, absent in v1/v2) and reports a second copy of every horizon number averaged only over (episode, step) pairs whose TRUE ball is fully visible, plus a matching probe floor. The visible-only column is the one comparable with v1 and v2 and is what §4 quotes. Both are in report.json; nothing was removed.

The speed and log_mass derived probe targets simply do not exist here — analyze.add_derived_targets already returned the state unchanged when there is no mass column, and horizon_by_mass is already behind if mass is not None, so eval_rnn needed no other v3 work. Same for eval_conservation, whose Episodes.has_mass is a name lookup.

6. Conservation (runs/rnn_v3/conservation/)

30 episodes × 200 dream steps, warm-up 8, τ ∈ {0, 0.5, 1}.

(iii) speed. The ball’s speed is a hard constant 0.022 in v3, as in v1.

Same shape as v1 and v2: τ = 0 holds the constant for about 20 steps and then inflates; τ > 0 is off the law immediately, and most of that inflation is per-step sampling jitter that the position probe cannot distinguish from motion. rnn_v3_ms scores 14.7 rather than 19.5 — the multi-step loss did not help here either.

(v) the new metric: the hidden ball’s velocity. v3’s conserved quantity. Nothing inside the band can turn a ball around, so a dreamed trajectory that goes in heading down must come out heading down, at the same speed. This compares the dream against itself, before and after each hidden stretch, so unlike everything else in that file it is meaningful at τ = 1.

Read the first and last columns. On true latents the ball keeps its vertical direction across the band on 99 % of stretches (and flips vx on 27 %, which is the real wall-bounce rate plus probe noise — the instrument is calibrated). The τ = 0 dream keeps it on 60 %, and the sampled dreams on 50 %, which is a coin flip. The magnitudes are conserved fine (|v| ratio 0.94–1.00): the dream holds the speed and loses the direction. That is the same failure the exit-x numbers show, seen from another angle.

The dream also produces more hidden stretches than exist (145 and 458 against 90) because a jittering dreamed position crosses the band edge spuriously; treat the stretch counts as an upper bound.

(iv) well-formedness is uninterpretable on v3 and I am not quoting it. The proxy calls a frame well-formed if its decoded ball area is within 50–150 % of a per-episode reference — but in v3 a correct hidden frame has no ball at all and fails by construction, as does most of the 39 % partial bin. The ceiling is about 0.44 and the τ = 0 dream scores 0.386, which says more about how often the dream hides the ball than about whether the ball is well formed. The metric needs a v3 rewrite (condition on visibility, like everything else); it did not get one, and the figure’s lower panel should be ignored.

7. The permanence experiments (runs/rnn_v3/permanence/)

Three models in one pass: rnn_v3, ff, ms. 109 hidden runs of ≥ 3 frames on val+val_mix (4 more dropped for starting inside the first 8 frames of an episode, where there is no warm-up), 95 on tall, 82 on taller.

First, the instrument check that everything else depends on: the frozen kNN position probe applied to true fully hidden frames returns a mean y of 0.425, inside the band interior [0.36, 0.50], and falls outside it on only 3.1 % of frames. So a hidden frame does not spuriously trigger the exit detector. Its x reading on those frames is pure noise (rmse 0.236 ≈ the sd of ball_x), which is the correct behaviour and is what stage one proved.

7.1 (a) Position from h, by visibility

Episode-level splits within each bin. R² / rmse in world units; rmse is the column to read across bins (the hidden bin’s variance is much smaller).

probe = linear                 visible                partial                 hidden
z                  0.41/0.185  0.41/0.222    0.70/0.131  0.88/0.055   -0.07/0.212 -0.10/0.046
h[rnn_v3]          0.99/0.022  1.00/0.016    0.88/0.082  0.98/0.024    0.17/0.187  0.51/0.030
h[ff]              0.99/0.025  1.00/0.018    0.87/0.087  0.96/0.032   -0.21/0.226 -0.07/0.045
h[ms]              0.99/0.023  1.00/0.019    0.88/0.085  0.98/0.024   -0.26/0.230  0.59/0.028

probe = knn                    visible                partial                 hidden
z                  0.99/0.018  1.00/0.014    0.85/0.094  0.95/0.035   -0.51/0.252 -0.21/0.048
h[rnn_v3]          0.99/0.019  1.00/0.018    0.87/0.086  0.96/0.029    0.26/0.176  0.52/0.030
h[ff]              0.99/0.017  1.00/0.018    0.84/0.095  0.94/0.038   -0.41/0.244 -0.18/0.047
h[ms]              0.99/0.020  1.00/0.020    0.87/0.087  0.97/0.028    0.14/0.190  0.58/0.028

(each cell pair is ball_x then ball_y; 3136 / 2567 / 1297 frames per bin)

The design asked for R² > 0.9 on the hidden bin. It is 0.17–0.26 in x and 0.51–0.59 in y. But the control is the argument, and the control is clearly below zero on both: −0.21 / −0.41 in x and −0.07 / −0.18 in y, i.e. indistinguishable from z, which stage one proved carries nothing. So the recurrent model has some position memory and the feed-forward model has none, and the y component is three times the x component.

Note also that on h the linear probe is as good as kNN, where on z it is far worse (0.41 vs 0.99 in the visible bin). The LSTM has re-coded the VAE’s place-field position code into a linear one — the same observation v1 made (README_M §(c)), and it is why the decay curve below uses a linear readout.

7.2 The decay curve — position_from_h_by_hidden_time.png

One frozen kNN/linear probe fit once on all hidden frames pooled over the three bands (episode-level split), then scored separately at each hidden age k. Fitting a fresh probe per k would confound memory decay with having fewer frames to fit on at k = 22. Provenance: k = 1 draws 12/24/34 test frames from default/tall/taller, k = 10 draws 5/23/31, k = 20 draws 2/11/18 — past about k = 12 the curve is almost entirely taller.

rmse in world units, linear readout:

Two readings, and they point opposite ways:

• Against the control, the recurrent models are flat at ≈ 0.17–0.18 out to k ≈ 13 and then decay towards the ff/z floor by k ≈ 18. In R²(ball_x) the same curve runs 0.44 (k = 1) → 0.63 (k = 4) → 0.54 (k = 12) → 0.18 (k = 20) against a ff line that never leaves 0.11–0.31. The memory is real and it has a horizon of roughly 15–18 frames.
• Against the no-memory baseline, the recurrent models are worse until k ≈ 11 and better after. A ball hidden for three frames has barely moved, so “it is where it vanished” is an excellent predictor and the model’s 0.17 is not close. This is the same crossing that experiment (d) finds independently.

The z line is not zero because half the episodes use a tracking policy and the paddle — visible on every frame — leaks some ball x. h[ff] sits on top of it, which is exactly right: it has that cue and nothing else. That is why the floor for these tests is ff and not 0.

7.3 (b), (c), (d) Emergence

Warm-up on 8 true latents ending on the last partially visible frame, then dream open-loop at τ = 0 on the true actions through the hidden stretch and 10 frames beyond, decode with the frozen kNN probe, and find the first frame whose decoded ball leaves the band interior for two consecutive frames. Exit time is counted in frames from the entry frame, so the truth is length + 1.

(b), default band, 109 runs. censor = fraction of runs where the dream never brought the ball out at all within the horizon.

• Exit time and side are the win. 3.24 frames and 92 % against 9.50 and 41 %. The error histogram (exit_time_error_hist.png) shows the recurrent models peaked at +1 to +3 frames — they re-emerge the ball slightly late, consistently — while ff is flat across the whole range with a pile-up at the +12 clip (the censored runs).
• Exit x is the loss. 0.159 against a do-nothing 0.146. The scatter (exit_x_pred_vs_true.png) says why: rnn_v3 has a real but shallow slope and ff is a horizontal line at ≈ 0.65 — it has learned the marginal exit position and nothing else, which is precisely what a model with no memory should learn.
• The linear-extrapolation baseline is near-exact on runs without a wall bounce (MAE 0.0008), which is the check that the graders are right: with no bounce behind the band, a straight line is the truth.
• ms trades a little exit-x accuracy for a lower censoring rate and a slightly better exit time. It is not a clear win anywhere.

(c) hidden wall bounces. 12 on the default band, 81 pooled over all three. The obvious version of this test is worthless and I got it wrong first: scoring “is the dream nearer the truth or nearer the straight line” gives every model 1.00, including a baseline with no memory, because the straight line usually lands outside the box. The fair alternative hypothesis is the straight line clipped at the wall — “the ball kept going and is now against the wall” — which is where a model that saw the ball heading for the wall but did not simulate the bounce would put it. Both hypotheses are then inside the box, the separation is the overshoot rather than twice it, and chance really is 0.50.

Pooled over the three bands (mean overshoot 0.228):

So: above the no-memory baseline (0.88 vs 0.69; 0.84 vs 0.62 on the runs where the two hypotheses are well separated), and the exit-x error on bounce runs (0.183) is only a little worse than on no-bounce runs (0.150) where the linear baseline blows up from 0.0004 to 0.470. That is evidence for simulation over extrapolation, and it is weak evidence — n = 49, one model, and ff’s meaningless 1.00 on 6 runs is a reminder that a model which always puts the ball near the middle scores well on a test about being “inward”. On the default band alone (12 runs, 5 with a real overshoot) the test has no power at all and I would not quote it.

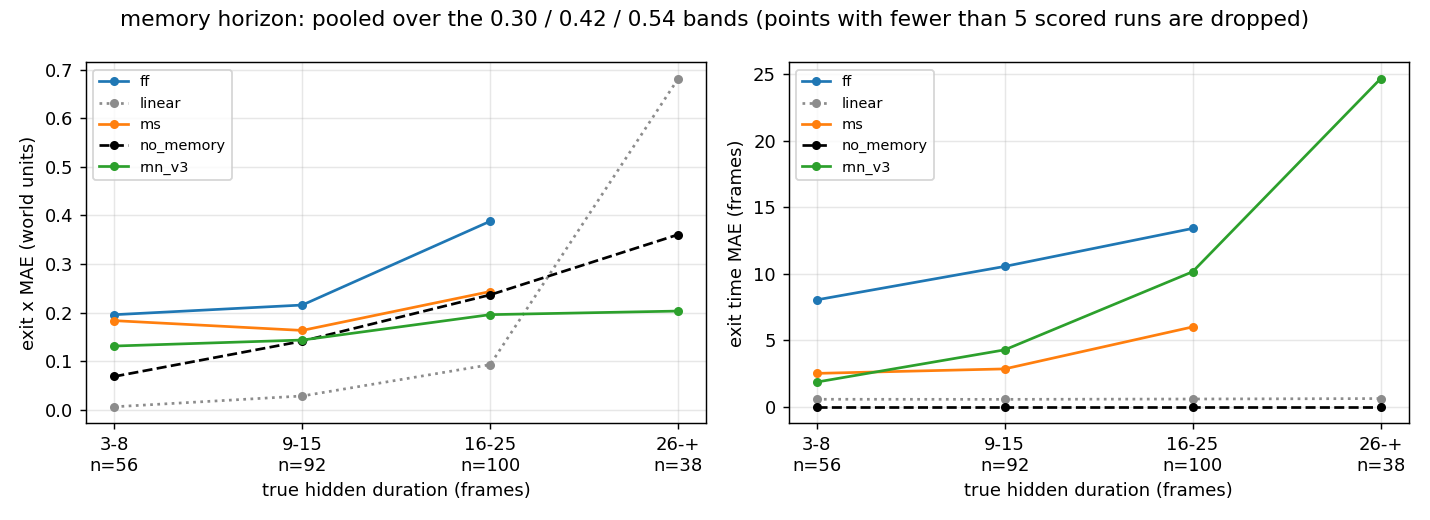

(d) memory horizon — memory_horizon.png, exit-x MAE pooled over the three bands, binned by the true hidden duration.

† fewer than 5 scored runs; dropped from the figure.

The crossover is at about 13 hidden frames. The recurrent model’s error is essentially flat in occlusion length (0.131 → 0.203, a factor of 1.5 over an 8× range of durations) where the memoryless baseline’s grows linearly (0.069 → 0.361, a factor of 5.2). That is the signature of a state estimator rather than a “remember the last sighting” heuristic, and it is the cleanest positive result for x memory in this document.

The caveat that must travel with it: rnn_v3 only produced an exit at all on 55/100 and 14/38 runs in the last two bins, so those numbers are conditioned on the dreams that did not simply lose the ball. The censoring is not random — it presumably favours the runs the model tracked best — so the 16–25 and 26+ cells are optimistic by an unknown amount. The 3–8 and 9–15 cells (56/56 and 83/92) are close to complete and are where the crossing happens, so the headline survives; the magnitude of the win at 26+ does not.

7.4 (e) Counterfactual entry

Re-simulate each episode from 8 frames before the occlusion with vx → −vx, re-render, re-encode with the frozen VAE, and dream. Unlike v2’s recolour intervention, this counterfactual has a ground truth, because the simulator produced it. Re-simulating from a recorded state reproduces the original trajectory to 6e-8 (asserted in passing during development), so the only error sources are the re-encode and the model.

A clean negative. “Δx sign agrees” is whether the dreamed horizontal displacement across the band has the same sign as the true one; 0.55 and 0.63 are not distinguishable from chance on 38 runs. The counterfactual manipulates exactly the quantity — horizontal velocity at entry — that (f) says h does not carry, so this is the same finding a third time rather than an independent one. Worth noting that the replay branch also sits at 0.63, so the failure is not caused by the intervention; the model simply does not propagate x.

The one thing that does show: ff’s mean predicted Δx is +0.174 in both branches while the truth is ≈ 0. It is not responding to the warm-up at all, just drifting to its learned marginal.

7.5 (f) What else is in h while hidden

Linear R², hidden frames only, episode-level split.

This is the table that explains the whole document. During an occlusion the recurrent state holds the vertical velocity (0.67) and a clock (0.54 for how many frames the ball has been hidden), and holds nothing at all about the horizontal velocity (−0.07, indistinguishable from the control’s −0.10).

Which is exactly what one-step teacher forcing rewards. While the ball is hidden, z_{t+1} does not depend on where the ball is behind the band — the frame is byte-identical — so tracking x buys the model nothing on 8 of every 9 hidden transitions. It buys something only on the last one, where the ball reappears, and even there the MDN can hedge with a wide or multimodal component. Tracking y and counting frames, by contrast, pays off immediately: they determine when the reappearance happens, which is a large, frequent term in the loss. The model learned the part of object permanence that its objective paid for.

8. The conservation verdict for stage three

The v2 lesson was: check what should be constant in long sampled dreams before training C. Done, and the answer is worse than v2’s.

• τ = 1 is unusable. Speed leaves the ±25 % band after 0.3 steps, and the hidden ball’s vertical direction survives 50 % of stretches — a coin flip.
• τ = 0.5 is also unusable (1.5 steps, 46 %).
• τ = 0 holds the speed for ~20 steps but keeps the hidden ball’s direction on only 60 % of stretches against a 99 % instrument floor. A controller dreaming at τ = 0 through an occlusion is being told the wrong thing about which way the ball is going about four times in ten.

The concrete recommendation for C: train at τ = 0, keep dream horizons short (≲ 20 steps), and do not expect a dream-trained controller to commit correctly during an occlusion, because the model it is dreaming inside does not reliably carry the ball across one. If a v2-style targeted fix is wanted, the conserved quantity to name is sign(vy) across a hidden stretch (and |vx|), which is what wm/eval_conservation.hidden_velocity_conservation measures and which --cons-loss-weight could be pointed at with a probe for vy instead of log-mass. I did not build that; it is the obvious next experiment.

9. Choices made without asking

• The feed-forward control uses tanh and 2×256, matching the LSTM’s output nonlinearity and width so that h lives in a comparable range and every probe is measuring the same kind of thing. It has more per-step nonlinearity than the LSTM and a third of the parameters.
• self.lstm stays None when feedforward=True and the MLP is a new attribute, so the two state dicts are disjoint and neither can silently load the other.
• The mass column is found by name in train_rnn. The old mass_col = 6 plus a state.shape[-1] <= 6 guard would have passed on a v3 dataset and trained the “log mass” head on log(ball_visible) — a privileged-target leak no shape assertion could catch. This is a bug fix in v2 code that v2 never triggered.
• The exit detector requires two consecutive frames outside the band. The kNN probe’s nearest neighbour can be a frame’s worth of motion away, so one frame poking over the edge is inside the instrument’s noise. The cost is nothing: no ball re-enters the band immediately after leaving it.
• Hidden runs touching either end of an episode are dropped (no entry frame to warm up on, or no exit to score), as are runs starting in the first 8 frames. 4 of 113 on the default band.
• Censored dreams are excluded from the error columns and reported as a censor fraction rather than being scored at the horizon. Scoring them at the horizon would have flattered ff (whose failures are “never brought the ball back”) into looking like a model with a large but finite error. The censoring rate is the more honest statement and it is in every table.
• Part (c) is reported pooled over the three bands as well as on the default band, because the default band yields 12 positives. The bands differ only in how long the ball is hidden, so pooling is legitimate for a question about what happens behind the band.
• The decay curve fits one probe on all hidden frames and scores per k, rather than fitting per k. Both readouts are reported because they disagree on 256-d h (kNN distances concentrate).
• wm/permanence.py is a separate module from the evaluator, so the four functions that could be silently wrong — hidden-run extraction, the age counter, the exit detector, the baselines — are unit-testable without importing torch, matplotlib and a checkpoint.
• eval_rnn’s visible-only columns were added rather than replacing the unconditional ones, so no v1/v2 number in an existing report changes meaning.
• Metric (v) switches itself on from meta["occluder"], so eval_conservation still produces byte-identical v1/v2 output.

10. Surprises and honest failures

10.1 The multi-step loss did nothing here, and I expected it to be the fix. The reasoning in the brief was good: during an occlusion the model is already running open-loop, since its input carries no ball, so teacher forcing should be the wrong training signal and --rollout-loss-steps 8 should be the cure. It cost 0.73 nats of val NLL, made open-loop latent MSE worse (0.527 vs 0.450), and on the permanence tests it is a wash: slightly better exit time (3.05 vs 3.24) and side (0.95 vs 0.92), slightly worse exit x (0.191 vs 0.159), the same ball_vy R² (0.671), the same absent ball_vx. My best guess is that the rollout loss rolls forward on the model’s own latents, and during an occlusion the correct latent is easy — it is the blank-behind-the-band latent, which the model already predicts well. Rolling open-loop through a stretch where the target is nearly constant does not teach you to track anything. A rollout loss that would help would have to be scored on the re-emergence, which is one transition out of ten and would need weighting.

10.2 The model learned the clock and the fall, not the drift. I went in expecting position memory to be roughly isotropic and to decay with time. It is not: y is carried at R² 0.51–0.59 and x at 0.17–0.26, and the reason (§7.5) is that only y and the frame count have an immediate effect on the next latent. This is a better finding than a uniform “R² 0.9, permanence achieved” would have been, because it names the mechanism.

10.3 The first version of the wall-bounce test gave every model 1.00, including the no-memory baseline. That is what caught it — the baseline scoring perfectly on a test it cannot possibly pass. The cause is in §7.3; the lesson is that a two-hypothesis test is only a test if both hypotheses are a priori plausible, and “the ball is outside the box” is not.

10.4 The z reference line on the decay curve is not zero. Stage one proved z carries nothing about ball position on a hidden frame — and it does not, directly. But half the episodes use a tracking policy, so the always- visible paddle is a partial proxy for ball x, and a probe pooled over bands picks up R² ≈ 0.2. It took a confused half hour to work out. It is also the reason the feed-forward model, and not zero, is the right floor: it has the same cue and no memory.

10.5 The unconditional dream horizon is 0 and that is the ruler’s fault. eval_rnn reported “dreams stay accurate for about 0 steps” for a model that is visibly fine for 14. The position probe cannot read a hidden frame, 17.6 % of frames are hidden, and the mean error over episodes is above one ball radius at h = 1 before the model has done anything. Fixed by conditioning (§5), but worth recording as the v3 instance of a recurring hazard: when the data changes, the metric changes meaning, and a number that got worse is not evidence that the model did.

10.6 ff overfits and the recurrent models do not. The only run of the four whose val NLL turns back up. Unexpected until stated plainly: it is the only model that cannot extract more signal from more context, so its extra capacity goes somewhere less useful.

10.7 The well-formedness proxy is broken on v3 and I left it broken rather than half-fixing it under time pressure (§6). It is in the figure; ignore it.

11. What stage three inherits

The checkpoint: runs/rnn_v3/rnn.pt — the plain recurrent model, best val NLL 3.968 at epoch 34. Not rnn_v3_ms, which is worse on NLL, on open-loop latent MSE and on exit x, and better only on exit time by a third of a frame. runs/rnn_v3_ff/rnn.pt is the control, and it is worth keeping paired with every C-stage experiment for exactly the reason it earned its place here: the design document’s §3-C tests (“does the paddle move toward the landing point while the ball is hidden?”) all need a floor, and ff is the floor.

What C can rely on:

• Timing and side, yes. The model will tell a controller when the ball is coming back and which side of the band it will come out of, to within a couple of frames and at 92 %. For a paddle that needs ~30 frames to cross the box, that is genuinely useful: it is the difference between starting to move and waiting.
• Horizontal landing point, no. The dreamed exit x is no better than assuming the ball comes back where it vanished, until the occlusion is longer than about 13 frames. The default band’s mean occlusion is 9.4. So on the band C will actually be trained on, the dream’s x is not informative, and a controller that appears to use it is using the paddle-tracking prior instead. The design’s prediction “C is flat across the had-to-move-while-hidden split” should be expected to fail, and the interesting experiment becomes whether C degrades to a wait-and-see policy or to something worse.
• Conservation: τ = 0 only, horizons ≲ 20 steps (§8). The hidden ball’s direction of travel survives a dreamed occlusion 60 % of the time at τ = 0 and 50 % at τ = 1.

The tall and taller splits remain the held-out band-height test, and they now have a stage-two result to be compared against: the model’s exit-x error is flat in occlusion length where the no-memory baseline is linear, so if C degrades gracefully on them it is not because M stopped working.
