worldsim — v1, v2, v3 and v4

A ball bouncing in a unit box with a paddle you move left/right/stay. Renders to 64×64 RGB, hands you ground-truth latent state alongside every frame.

Numpy only. Pillow for GIFs, pygame only for the interactive mode.

Quickstart

python -m worldsim.collect --out data/v1/train --episodes 100 --steps 200
python -m worldsim.collect --out data/v1/val   --episodes 10  --steps 200 --seed 1
python -m worldsim.play          # arrow keys, needs pygame

100×200 is ~20k frames, 245 MB, about a minute to generate.

Data format

(frames[e,t], actions[e,t]) -> frames[e,t+1]. T+1 frames give T transitions.

State columns: ball_x, ball_y, ball_vx, ball_vy, paddle_x, paddle_vx, then mass if v2 and ball_visible if v3, in that order. Read meta["state_names"] rather than assuming 6. World coords are [0,1]² with y=0 at the bottom of the image.

Load with mmap_mode="r" — these are separate .npy files rather than one .npz specifically so you can train on data larger than 8 GB of RAM:

frames = np.load("data/v1/train/frames.npy", mmap_mode="r")  # no RAM cost
batch = torch.from_numpy(np.array(frames[eps, ts]))          # copy just the batch

Things worth knowing before you train

States are for probing, not training. Don’t feed states.npy to the VAE. It’s there so that after training you can ask which of the six true variables are linearly decodable from z, which need a nonlinear probe, and which just aren’t in there. That’s the concrete version of “did it learn the right variables,” and it’s a couple of hours of work on top of a model you already have.

Rendering is antialiased on purpose. Hard pixel edges quantise position to 1/64, and a VAE trained on quantised positions gives you a latent space where sub-pixel ball position isn’t recoverable even in principle. The analytic coverage rendering keeps that information in the image.

Ball speed is conserved. The paddle changes direction via sideways “english,” not energy. This keeps the data distribution stationary, so the dynamics model isn’t chasing a slow drift.

Actions affect the ball rarely. Measured paddle-contact rate is ~0.2% of frames, i.e. the paddle intercepts roughly a third of floor bounces. Action → paddle position is dense and easy; action → ball trajectory is a sparse, delayed, contact-mediated effect. That’s the interesting part, but if your dynamics model seems to ignore actions entirely, that sparsity is the first thing to suspect. Knobs: paddle_w (0.26), english (0.35), ball_speed (0.022).

Sticky actions, not i.i.d. Uniform random actions make the paddle random-walk in tiny steps and never leave the middle. mean_hold=8 gives full sweeps across the box, so the model sees real paddle velocity.

Suggested sequencing

1. Play it by hand once. Check the ball is trackable at 64×64.
2. Collect, then look at sample_grid.png-style tiles of your own data.
3. Train the conv VAE to convincing reconstructions before touching dynamics. If reconstructions are mush, every downstream result is uninterpretable and you’ll spend days blaming the GRU.
4. Then dynamics on (z_t, a_t) -> z_{t+1}, trained separately from the VAE.
5. Then render.side_by_side(true_rollout, dreamed_rollout) → save_gif. This is the payoff: watching where and how it drifts.

v2 — mass from colour

Everything above still describes the environment exactly when mass_from_color is False, which is the default. BoxConfig() with no arguments is v1, bit for bit — tests/test_env_v2.py::test_v1_frames_byte_identical replays the collector’s seeding and compares against data/v1/val/frames.npy pixel for pixel, so if that ever stops being true you find out immediately.

The idea

At reset() the ball is given a mass m, drawn log-uniformly from [0.5, 2.0], and painted a colour that encodes it. Mass then feeds back into the physics in exactly two places, both the same statement — same impulse, different mass:

So a yellow ball is light: it moves ~0.044 world units/frame (≈2.8 px at 64²) and the paddle flicks it hard. A purple ball is heavy: ~0.011/frame, and the paddle barely bends its path.

Why this is the right second world. v1 had two kinds of variable: visible in a frame (positions) and invisible in any frame (velocities). v2 adds a third: visible in a frame, but only as appearance, with purely dynamical consequences. That is an appearance→dynamics causal edge, and each stage of V–M–C has a different job with it — V has to notice the colour at all, M has to learn that this latent multiplies the step size (a multiplicative interaction between latents, which a linear dynamics model cannot represent), and C can in principle lead a fast ball more than a slow one.

Why log-uniform mass

Mass enters as a ratio (1/m). Under a linear prior on [0.5, 2], “twice as heavy” and “half as heavy” would occur at very different rates and the median ball would be m = 1.25, not 1. Log-uniform makes the distribution symmetric under m → 1/m, puts the median exactly at m = 1 — the v1 ball — and makes the colour ramp linear in the variable the pixels actually vary with.

The colour ramp

u = log(m/0.5) / log(2/0.5) ∈ [0,1], then a two-segment path in RGB:

u=0.0  (250,220,80)  yellow   m = 0.5   fast, easily deflected
u=0.5  (235,90,70)   v1 red   m = 1.0   exactly the v1 ball
u=1.0  (150,40,200)  purple   m = 2.0   slow, stubborn

A single straight lerp from yellow to purple was the first choice and it is worse: its midpoint is (200,130,140), a desaturated dusty pink, and the midpoint is exactly where most of the probability mass sits. Routing through the v1 red keeps every ball vivid, keeps the whole ramp ≥100 RGB units away from the blue paddle and the near-black background (asserted in the tests), and makes the median v2 ball literally the v1 ball.

mass_to_color(m, cfg) and color_to_mass(rgb, cfg) are exported. The inverse projects onto the polyline using all three channels rather than inverting one — robust to the 8-bit rounding, to antialiased edge pixels, and to VAE reconstructions that are near the ramp but not on it. Round trip is accurate to <0.5% in mass.

State vector

states.npy gains a 7th column, mass, only when mass_from_color is on:

v1: ball_x, ball_y, ball_vx, ball_vy, paddle_x, paddle_vx          (6)
v2: ball_x, ball_y, ball_vx, ball_vy, paddle_x, paddle_vx, mass    (7)

Read meta["state_names"] rather than assuming 6. meta["version"] is "v2_mass_from_color" for v2 splits, and meta also records mass_from_color, mass_holdout and mass_only.

Held-out masses: the generalisation test

Two mutually exclusive collector flags, both rejection-sampled at reset():

• --mass-holdout LO HI — never sample a mass inside [LO, HI]. Used for every training split.
• --mass-only LO HI — sample only inside [LO, HI]. Used for the matching test split.

With 0.85 1.2 this gives a clean interpolation test: the model has seen lighter balls and heavier balls, but never one of that colour. Fit a probe on the seen colours, score it on the unseen band, and you learn whether the latent code for colour is a genuine continuum or a lookup table of the colours it was shown. (wm/analyze.py --eval-data does exactly this.)

Collecting v2

COMMON="--ball-radius 0.08 --steps 200 --res 64 --mass-from-color"
HO="--mass-holdout 0.85 1.2"
python -m worldsim.collect --out data/v2/train     --episodes 150 --seed 0   --policy sticky $COMMON $HO
python -m worldsim.collect --out data/v2/train_mix --episodes 300 --seed 10  --policy mix --p-track 0.5 $COMMON $HO
python -m worldsim.collect --out data/v2/val       --episodes 15  --seed 1   --policy sticky $COMMON $HO
python -m worldsim.collect --out data/v2/val_mix   --episodes 20  --seed 11  --policy mix $COMMON $HO
python -m worldsim.collect --out data/v2/probe     --episodes 120 --seed 777 --policy sticky --steps 24 --ball-radius 0.08 --res 64 --mass-from-color $HO
python -m worldsim.collect --out data/v2/holdout   --episodes 30  --seed 21  --policy mix $COMMON --mass-only 0.85 1.2
python -m worldsim.v2_figures --data data/v2/train --gif-data data/v2/val_mix --out runs/v2_env
python -m worldsim.play --mass-from-color     # press R for a new mass

Whole set: ~1.3 GB, about 40 s of wall clock. The collector prints a log-binned mass histogram per split — a correct training split is flat with an empty gap at [0.891, 1.122), and the hold-out split is the gap and nothing else.

Measured (see runs/v2_env/collect.log):

Contact rates are 2–5× the v1 figure (~0.2%), for two reasons worth separating: the bigger ball (--ball-radius 0.08, also used for the v1 VAE data) and the fact that light balls reach the floor far more often per episode.

32 episodes sorted by mass. The red band in the middle of the ramp is missing because that is precisely the held-out mass band — the gap in the colours is the generalisation test, made visible.

runs/v2_env/light_vs_heavy.gif plays the lightest and heaviest episode of val_mix side by side (m=0.51 vs m=1.94) at the same frame rate.

One surprise, worth knowing before you build M

Both v2 effects carry a 1/m, and in the post-bounce direction they cancel exactly:

tan θ = vx / vy = (english·paddle_vx / m) / (ball_speed / m) = english·paddle_vx / ball_speed

and the renormalisation rescales both components, preserving the ratio. So a heavy ball leaves the paddle at the same angle as a light one; what differs is that it leaves slower, so the absolute sideways velocity — the thing that decides where the ball actually is fifty frames later — still scales as 1/m. This is asserted in tests/test_env_v2.py::test_english_scales_as_one_over_mass. If you later want mass to change the bounce geometry as well, decouple the two knobs (e.g. english_mass_exponent) rather than changing the speed law, which would break the within-episode speed conservation v1 was built around.

Tests

python -m tests.test_env_v2      # 11 tests, includes the v1 byte-identity check
python -m tests.test_rnn
python -m tests.test_controller

v3 — the occlusion band

Everything above still describes the environment exactly when occluder is False, which is the default. BoxConfig() is still bit-for-bit v1 and BoxConfig(mass_from_color=True) is still bit-for-bit v2 — tests/test_env_v3.py replays the collector’s seeding for both and compares against data/v1/val/frames.npy and data/v2/val/frames.npy pixel for pixel.

The idea

With occluder=True, an opaque horizontal band is painted across the full width of the frame, after the ball and the paddle, between world heights occluder_y = (0.28, 0.58). That is the entire change. The physics is not touched: the ball flies straight through the band, bounces off the side walls behind it, and is simply not drawn.

Why this is the right third world. v1 had two kinds of variable: visible in a frame (positions) and invisible in any frame (velocities). v2 added a third: visible as appearance, with purely dynamical consequences. v3 takes away the first kind. For a stretch of every vertical traverse the frame contains no information whatsoever about where the ball is — the image is byte-identical for every ball position behind the band, which test_band_hides_the_ball_completely asserts directly. If anything downstream is to know where the ball is during that stretch, it has to be carrying it. That is object permanence.

Why those numbers. The ball’s diameter is 0.16 and the band is 0.30 tall, so the ball is completely hidden for (0.30 − 0.16)/|v_y| frames — measured at 9.7 frames on average, with about 39% of all frames partially occluded around them. The band’s bottom edge at 0.28 means a descending ball reappears only ~10 frames before it reaches the paddle, while the paddle needs ~30 frames to cross the box. A controller that waits until it can see the ball therefore cannot catch it from far away: it has to commit while the ball is hidden. That is what makes the band matter for C and not only for M.

Mass-from-colour is left off for the v3 datasets, so the two questions are not compounded. The switches are independent and compose — with both on the state has 8 columns.

The band colour

(95, 110, 130), a desaturated grey-blue. It has to be distinguishable from all three existing colours, for the same reason the v2 ramp did: if the band were near the paddle blue, “the VAE lost the band” and “the VAE confused the band with the paddle” would be the same picture. Distances in RGB:

The paddle is the nearest neighbour and 115 is the tightest margin in the project, but it clears the same >100 threshold the v2 ramp is held to (test_band_colour_is_distinguishable_from_everything_else), and the two differ in saturation and brightness as well as hue — a dim grey slab versus a small vivid blue bar. Looking at runs/v3_env/sample_grid.png settles it: they do not read as the same object. So the grey-blue stayed; no grey-green was needed.

The band is drawn with the same antialiased separable box coverage the paddle uses, so its edges are soft like everything else in the frame. This is not cosmetic. A hard-edged band would be the only quantised object in the image, and a VAE will happily spend capacity on the one crisp edge available to it.

ball_visible

states.npy gains a column, last, only when occluder is on:

v1:    ball_x, ball_y, ball_vx, ball_vy, paddle_x, paddle_vx                        (6)
v2:    ... , mass                                                                    (7)
v3:    ... , ball_visible                                                            (7)
v2+v3: ... , mass, ball_visible                                                      (8)

ball_visible is the fraction of the ball’s disc area not covered by the band, computed analytically from the circular-segment formula (worldsim.visible_fraction, exported):

A_below(c) = πr²/2 + r² asin(d/r) + d √(r² − d²),   d = clamp(c − y, −r, r)
visible    = 1 − [A_below(hi) − A_below(lo)] / πr²

Analytic rather than by sampling pixels, deliberately: ball_visible is a grading variable, and grading must not move when someone renders at 128 instead of 64. It is 1 when the ball is clear of the band, 0.5 when the centre sits exactly on an edge, 0 when the ball is entirely inside, and monotone in between. test_visible_fraction_matches_a_brute_force_count checks it against 400k-point Monte Carlo on the disc to 3e-3.

It is a diagnostic only — the model never sees it. The same goes for the new event bit.

EVENT_HIDDEN = 8

A fourth bit in the per-step event mask, set when ball_visible < 1e-3 at the end of the step. It is redundant with the state column by construction (and test_event_hidden_agrees_with_ball_visible asserts they never disagree); it exists so analysis code can slice hidden stretches straight out of the small events.npy without loading the states, and — the reason it earns its place — so that “was the ball hidden” and “did it hit a side wall” live in the same array and can be intersected in one line. worldsim.collect.hidden_runs does exactly that, and it is how the wall-bounce statistic below is computed.

Why a threshold and not == 0: the renderer antialiases the ball, so a ball whose analytic coverage is a few parts in ten thousand can still tint a pixel under the band edge. 1e-3 of a disc is about 0.02 px² at 64×64 — safely below one pixel, and comfortably above the float noise.

Collecting v3

COMMON="--ball-radius 0.08 --steps 200 --res 64 --occluder"
python -m worldsim.collect --out data/v3/train     --episodes 150 --seed 0   --policy sticky $COMMON
python -m worldsim.collect --out data/v3/train_mix --episodes 300 --seed 10  --policy mix --p-track 0.5 $COMMON
python -m worldsim.collect --out data/v3/val       --episodes 15  --seed 1   --policy sticky $COMMON
python -m worldsim.collect --out data/v3/val_mix   --episodes 20  --seed 11  --policy mix $COMMON
python -m worldsim.collect --out data/v3/probe     --episodes 120 --seed 777 --policy sticky --steps 24 --ball-radius 0.08 --res 64 --occluder
python -m worldsim.collect --out data/v3/tall      --episodes 30  --seed 31  --policy mix $COMMON --occluder-y 0.22 0.64
python -m worldsim.collect --out data/v3/taller    --episodes 30  --seed 32  --policy mix $COMMON --occluder-y 0.16 0.70
python -m worldsim.v3_figures --data data/v3/train --gif-data data/v3/val --out runs/v3_env
python -m worldsim.play --occluder      # try catching it yourself; it is hard

Whole set: ~1.4 GB, 63 s of wall clock. The collector prints an occlusion summary per split and writes it into meta["occlusion"], so every v3 result carries the occlusion statistics it was conditioned on.

Measured (runs/v3_env/collect.log):

Four things worth reading off that table.

1. The design estimate was right. §2 of docs/v3/00_v3_design.md predicted ~9 hidden frames and ~20 partial frames per traverse; the measurement is 9.7 and 39% of frames partial. Nothing needed retuning.
2. A sixth of the data is provably uninformative about ball position. That is the fraction on which every memory claim in v3 will be scored.
3. Hidden runs are short but heavy-tailed — median 8, max 44 on the default band. The tail is the ball entering the band at a shallow angle and crawling through it, and it matters because those are the runs that need the longest memory. See runs/v3_env/hidden_run_lengths.png.
4. 15–19% of hidden runs contain a side-wall bounce, rising to 42% on the taller band. Those are the runs where “keep extrapolating the last seen velocity” gives the wrong exit x, so they are the ones that separate an internal simulator from an extrapolator. There are ~170 of them in train + train_mix, which is enough to learn from and enough to test on.

The probe split’s runs are shorter (6.9) only because its episodes are 24 steps long, so runs straddling the episode boundary are truncated.

32 frames stratified on ball_visible and sorted visible → hidden (a uniform sample would have shown almost no partial occlusions, which are the interesting case). The last row is fully hidden: those eight frames differ only in the paddle.

runs/v3_env/occlusion_episode.gif is data/v3/val episode 0, frames 63–140. The ball enters the band from below at y = 0.36, is hidden for 27 frames, hits the left wall at x = 0.082 while completely out of sight (the event mask for that step is 9 = EVENT_WALL_X | EVENT_HIDDEN), and re-emerges travelling right. The exit x depends entirely on a collision that never appeared in a single pixel. That one clip is the whole of v3.

Tests

python -m tests.test_env_v3      # 12 tests, includes the v1 AND v2 byte-identity checks
python -m pytest tests/ -q       # 77 total

The four that matter: v1 and v2 frames unchanged; the band is exactly its own colour inside and touches nothing outside; ball_visible matches brute-force Monte Carlo and EVENT_HIDDEN matches ball_visible; and the trajectory is bit-identical with and without the band, for the same seed and actions. That last one is v3’s premise — if the band ever perturbed the dynamics, “the model cannot see the ball” and “the ball does something different back there” would be confounded and no memory result would mean anything.

v4 — the gravity switch

BoxConfig(gravity=1e-4, launch_min_angle_deg=40). Everything else is v1: one ball colour, no band, paddle 0.26, launch speed 0.022. The two earlier switches still compose with it — gravity is orthogonal to mass_from_color and occluder, and the state columns stack in that order.

The idea

v1 hid velocity: invisible in any one frame, inferable from two. v2 hid mass behind an appearance cue: visible in one frame, but only as colour. v3/v3.1 hid position for a stretch of every traverse: recoverable only from memory, but only for ~20 frames.

In all three, the information needed to predict the next frame sat in a bounded window of recent frames. v4 removes that. The ball feels a constant vertical acceleration whose direction — gravity_sign, ±1 — is drawn at reset and multiplied by −1 on every paddle contact. Nothing in any frame shows it. It holds for the ~75–105 frames until the next contact, and it bends every trajectory in that stretch. To predict well, a model has to notice the event and remember its consequence.

Three physics decisions, none of them inherited

Speed is no longer conserved, so _renormalise_velocity is off whenever gravity is on. It has to be: pinning the speed would destroy exactly the curvature the tier is about. Gravity is conservative and the walls are elastic, so |v| is a function of height and stays bounded on its own; the one term that adds energy from outside is the paddle’s english, which is why _clip_speed bounds the speed after a contact rather than every frame.

The min_vy_frac guard goes with it, because it lives inside _renormalise_velocity. That is the right call and not merely convenient: the guard existed to stop a ball skimming horizontally forever, and under gravity a horizontal ball is pulled off the horizontal within a few dozen frames anyway.

The launch angle had to be raised. With vy² > 2 g Δh and Δh = 1 − 2r = 0.84, g = 1e-4 needs |vy| > 0.0130 — 36.2° at speed 0.022 — or the ball cannot cross the box against the pull and the episode degenerates into a floor-skim. v4 launches above 40°, with margin. launch_min_angle_deg raises the |sin θ| bound only; the |cos θ| > 0.25 bound that keeps launches off vertical stays at its v1 value. Tying both to one constant would be worse than cosmetic: at 50° the rule would become |sin| > 0.766 AND |cos| > 0.766, which no angle satisfies, and the rejection sampler would spin forever.

The byte-identity trap in that parameter

launch_min_angle_deg defaults to 14.5, which names the v1 rule (asin(0.25) = 14.4775°) rather than reproducing it: sin(14.5°) = 0.250380. The difference looks negligible and is not. The guard is a rejection sampler, so a threshold 4e-4 too high does not perturb an angle — it rejects a draw v1 accepted, shifts that episode’s rng stream by one, and produces a completely different, completely plausible episode. It happens on ~0.04% of resets: often enough to corrupt one episode in a few hundred, rare enough to survive a five-frame spot check. launch_min_sin() therefore pins the v1 value as a literal, and tests/test_env_v4.py replays 400 resets against a hand-written copy of the v1 loop.

The flip

if cfg.gravity > 0.0:
    self._clip_speed()
    if not (self._events & EVENT_PADDLE):      # once per FRAME, not per substep
        self.gravity_sign = -self.gravity_sign
        self._events |= EVENT_FLIP
else:
    self._renormalise_velocity()

Once per frame matters. _collide_paddle runs in every one of the four substeps, and a contact spanning two substeps is one contact — flipping twice would silently mean not flipping at all. EVENT_PADDLE is already set if an earlier substep touched the paddle, which makes it exactly the “have we flipped yet this frame” flag.

EVENT_FLIP is therefore redundant with EVENT_PADDLE whenever gravity is on, in the same way EVENT_HIDDEN is redundant with ball_visible. It exists for the same reason: analysis code can slice “frames since the latent changed” straight out of events.npy without knowing which switches produced the file.

State vector

[ball_x, ball_y, ball_vx, ball_vy, paddle_x, paddle_vx, (mass), (ball_visible), (gravity_sign)]

gravity_sign is appended last, after any v2/v3 column, so all three switches compose and meta["state_names"] is always the authority. It is a grading variable: the model never sees it.

Collecting v4

bash runs/v4_env/collect_v4.sh        # the six calls below, ~5 min, 1.5 GB

python -m worldsim.collect --out data/v4/train --episodes 150 --steps 200 \
    --ball-radius 0.08 --res 64 --gravity 0.0001 --launch-min-angle 40

Every number also lives in that split’s meta["flips"]. “Stalled frames” is the fraction whose preceding 100 frames contain no visit to either end of the box — the one failure mode gravity introduces that a bounds check would not catch.

Four things worth reading off it.

1. Flips are rare and well spaced — one to two per 200-step episode, 74–106 frames apart. That interval is the memory horizon stage two has to bridge, and it is 4–5× v3.1’s hidden runs.
2. A quarter of train episodes never flip at all. Those are not waste: they are the control condition (the sign held from reset), and the “sign at episode start” baseline needs them.
3. probe has almost no flips (0.16/episode), by construction. Its 24-step episodes are far shorter than the flip interval. That is correct for what it is for — fitting per-frame probes, where the question is whether a single frame carries the sign, and each episode contributing one constant label is exactly the right design.
4. The two signs are not 50/50 in frames (55/45). Episodes start balanced and flips alternate, but gravity-down traverses take longer (see below), so more frames accumulate under them. Chance level for a sign classifier is therefore 55%, not 50% — wm.analyze_v4 reports the majority-class baseline next to every accuracy for this reason.

Speed is genuinely variable, by a factor of seven

_clip_speed was expected to be a formality and is not. The english does not average out — a tracking paddle is usually moving toward the ball when it hits, so successive impulses correlate — and on the tracking-heavy splits the ball reaches the 0.05 cap (5 clips in train_mix, 8 in long; none on the sticky splits). Combined with gravity’s own contribution the observed range is 0.0053–0.0516. Do not carry a “speed is roughly constant” assumption from v1 into any v4 analysis: wm.eval_controller.floor_visit_stats is handed the per-episode maximum speed for exactly this reason.

Figures

python -m worldsim.v4_figures --data data/v4/train_mix \
    --gif-data data/v4/long --traj-data data/v4/long --out runs/v4_env

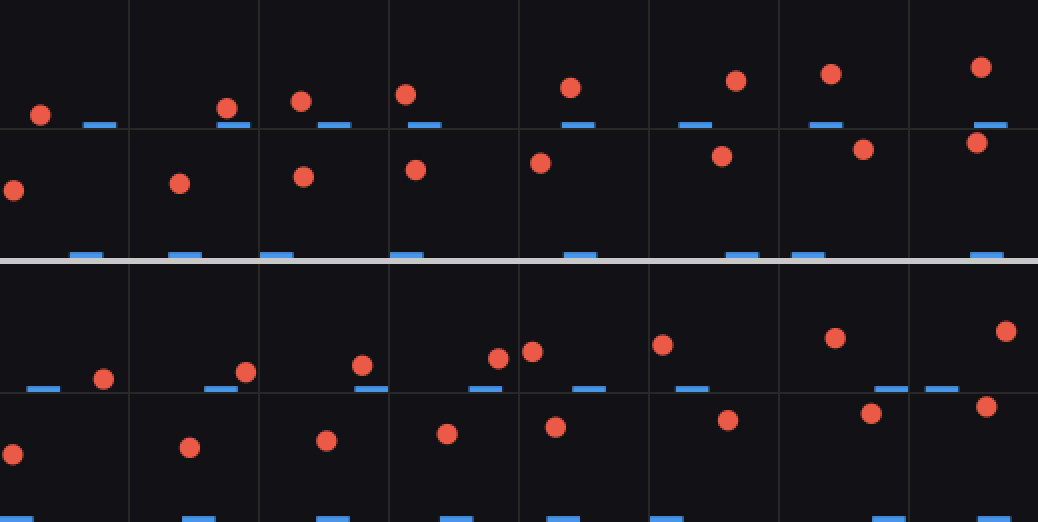

32 frames: the top panel is gravity-down, the bottom gravity-up, matched on ball height (each tile pairs with the tile above it). The matching is the point — under gravity-down the ball genuinely spends more time high in the box, so an unmatched sample would show you the sampling rather than the world. The two panels should be, and are, indistinguishable. That is the v4 premise as a picture.

runs/v4_env/gravity_episode.gif is data/v4/long episode 24, frames 108–199, with the flip at t = 154. Fitting a quadratic to ball_y either side gives −1.04e-4 before and +1.16e-4 after. The ball accelerates downward into the contact and upward away from it — which no constant-gravity world can do.

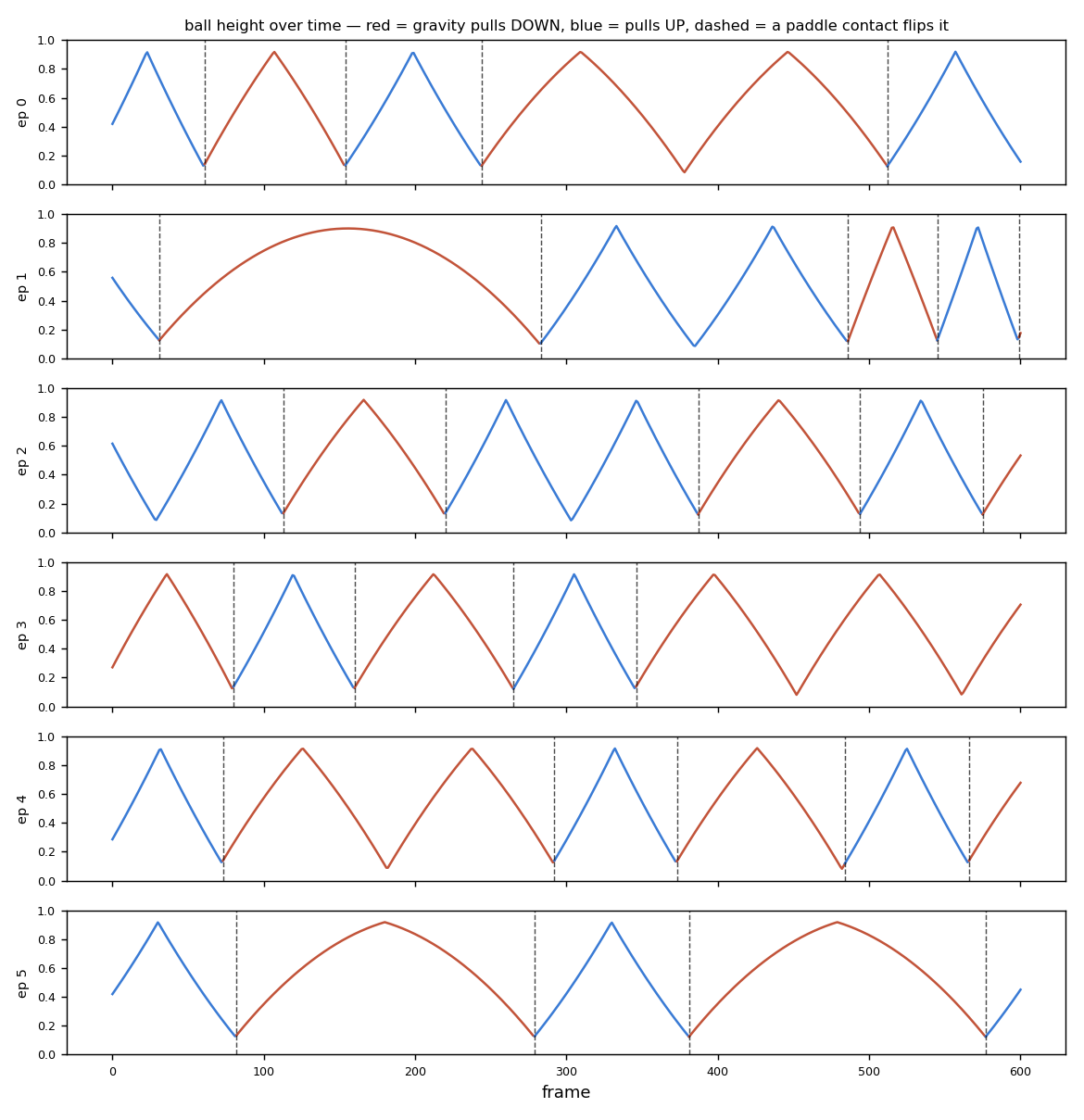

ball_y against time for six 600-step episodes, red where gravity pulls down, blue where it pulls up, dashed at each flip. Red traverses arch (the ball decelerates the whole way up and only just reaches the ceiling); blue ones are steeper and more nearly straight.

The cue the design document did not anticipate

That difference is measurable, and it is coarser than a curvature fit (runs/v4_env/traverse_stats.json, from data/v4/long):

A 1.20× difference in crossing time. The sign is invisible in a frame, as designed — but at a 40° launch it also sets the ball’s energy budget, so it is partly re-derivable from a single traverse rather than only from a memory of the flip. Stage two must therefore treat “M knows the sign” and “M remembers the flip” as separable claims; the flip counterfactual, which holds the trajectory-so-far fixed, is the test that separates them.

Tests

python -m tests.test_env_v4      # 11 tests, includes the v1/v2/v3/v3.1 replays
python -m pytest tests/ -q

The ones that matter: all four earlier val sets replay byte-for-byte; the v1 launch rule is reproduced exactly over 400 resets; free flight accelerates by exactly gravity per frame (checked on ball_v in float64, not the float32 state column); the sign flips iff EVENT_FLIP fires iff EVENT_PADDLE fires; gravity=0.0 is bit-identical to plain v1; and the sign-blind oracle equals the ballistic oracle exactly where the true sign is down — which is what licenses reading the design sweep’s gap as the price of the hidden bit.

Where the C-stage question went

runs/v4_design/sweep.md has the full story and it is a negative result worth knowing before stage three: a sign-blind oracle scores identically to the full oracle at every gravity tested (gap 0.00, 8 cells). The paddle crosses the box faster than the ball falls, and a wrong sign is a large error far away and no error up close, so the tracker simply waits and corrects. Raising gravity does not help — it only stalls episodes. v4’s live questions are the M-stage ones.
