v2 — 03: C. Does the agent use mass?

The v1 controller recipe on the v2 world, graded by mass; the v1 controller dropped into v2 as a baseline; and a finding about dreams that explains more than the controller numbers do.

1. The question

M reads colour and dreams speed from it (doc 02). Mass and speed are linearly available in h (R² 0.99). So the 819-parameter linear controller has the ball’s mass on its input, as a plain feature. Does it use it? Two observable consequences if it does: it should not fall apart on fast balls, and its decisions should depend on speed × position, not position alone.

2. What was run

Same recipe as v1 (doc 04): CMA-ES, population 32, 16 dreams of 150 steps per candidate, 200 generations, τ = 1, a 24-episode real check every 5 generations, in the v2 dream (runs/rnn_v2). Variants:

Two metric changes from v1, both about fairness across mass. Light balls reach the floor ~4× more often than heavy ones, so the mass-fair skill measure is interceptions per floor visit rather than per episode. And the floor-visit detector’s height band now scales with the ball’s speed (a fast ball moves further per frame), otherwise fast balls’ chances are under-counted; the oracle scoring 0.99–1.00 in every tercile is the check that the detector is right.

3. Results

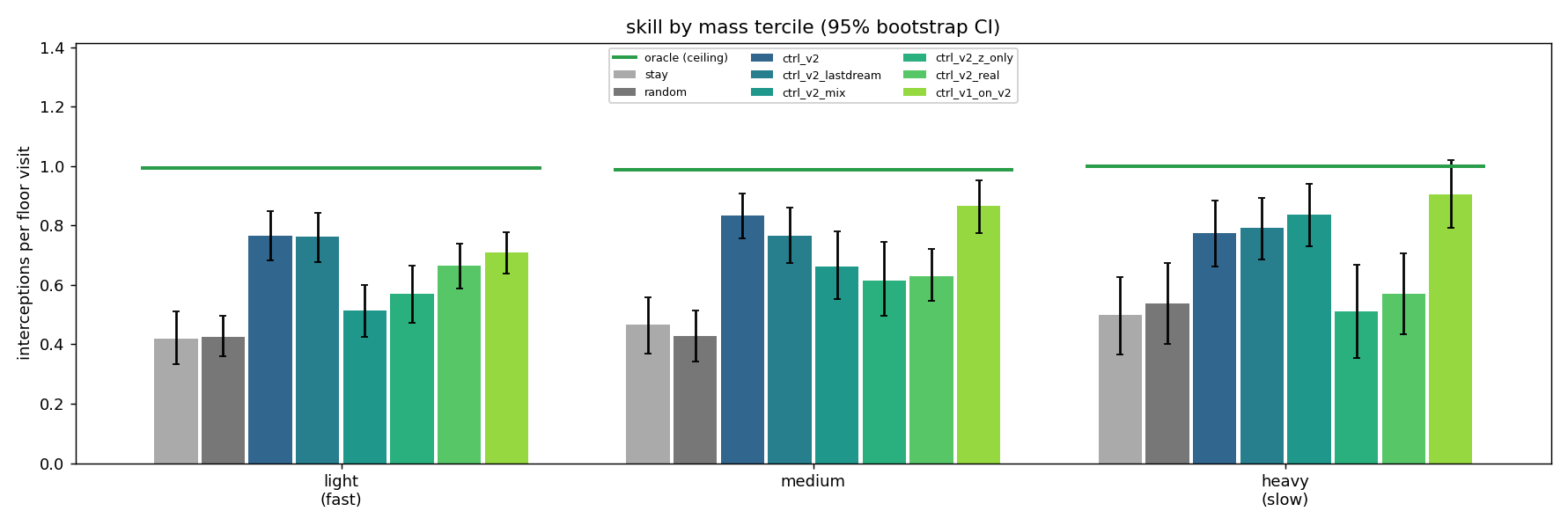

150 real episodes, in-distribution masses, interceptions per floor visit:

What the table says:

1. The dream-trained v2 controller is flat across mass: 77 / 84 / 78% of the oracle. It does not collapse on fast balls, which is the first thing a speed-blind policy would do. It falls just short of the 85% bar the design doc set, uniformly.
2. The dream-only parameters are as good as the real-selected ones (0.77 vs 0.79): zero real frames were needed. Dream-to-real transfer correlation is +0.74, the best of either version, mostly because the real-side metric is now interceptions rather than contact frames.
3. The v1 controller, which has never seen a coloured or fast ball, ties it overall — and beats it on medium and heavy balls, losing only on light ones (0.71 vs 0.76). The shape is exactly the predicted one: the cost of not reading mass sits on the fast balls. The size is much smaller than anticipated: a slow ball forgives a wandering paddle, and on heavy balls the v1 policy’s approach-direction agreement is at chance (0.50) while it still intercepts 90% of the time.
4. z-only is poor again (0.57), even though in v2 z contains the speed. Knowing how fast without which way is not enough. Clean negative control.
5. mix reward reproduces the v1 pathology: many contact frames per interception, concentrated on heavy balls. dense is confirmed as the right default.
6. Real-environment training with the reduced budget reaches 0.64 on 1,024,000 real frames; the dream-trained controller reaches 0.79 on 0.

Held-out colours. On 60 episodes drawn only from the never-seen mass band, ctrl_v2 scores 0.79 (CI 0.72–0.85) against 0.83 (0.76–0.91) on its in-distribution medium tercile. The intervals overlap almost fully; gap at floor and approach agreement are within 0.01–0.03. No interpolation failure.

4. Does it use mass? — the decision analysis, and why it is inconclusive

Regress each controller’s drive (logit(right) − logit(left)) on approach frames against position error, velocities, speed, and the interactions speed × x_err, speed × vx. A mass-aware controller should need the interaction terms.

The term is present for ctrl_v2 and absent for the z-only control — so far so good. But it is stronger for the v1 controller, which by construction should not have it. Either speed is confounded with the whole distribution of approach states (fast balls arrive from different places and angles), or the v1 VAE fed out-of-distribution colours leaks some colour information into mu after all. Either way, “interaction term present” is not a sufficient test on this data, and the design doc’s success criterion has to be downgraded. The right test is interventional, like doc 02’s: repaint the ball, hold everything else fixed, and see whether the controller’s drive changes. Not done here.

The behavioural prediction “reacts earlier for light balls” is not supported: the controller gets into position 6.8 frames before contact on light balls and 21 on heavy — later for fast balls, like every policy including the oracle (8.1 on light). Fast balls simply leave less time.

5. The finding that matters most: dreams do not conserve colour at τ = 1

The agent noticed by eye that in the controller’s dream GIF the ball’s colour drifts from yellow through red to purple over 200 frames. I checked it quantitatively: read the dreamed ball’s mass back with a probe, over a 200-step dream, at the two temperatures that matter.

So M has learned that mass is constant — the deterministic dream holds it for 200 steps — but under sampling, the colour factor random-walks and is unrelated to the true mass within 25 steps. Mass is a latent with no restoring force: nothing in the data ever pulls it back toward a value, so per-step sampling noise integrates. Position has walls and the paddle; velocity has the speed law; colour has nothing.

This reframes the controller results. ctrl_v2 was trained inside 150-step τ = 1 dreams in which the ball’s speed law drifted under it. A controller cannot learn to condition on a cue that its training environment does not keep consistent. That is a plausible reason its mass-interaction term is weak and it does not beat the mass-blind v1 policy — and it is a general property to expect of any conserved quantity in a stochastic latent rollout. Remedies to try: train C at lower τ; pin the colour subspace during the dream; or add a consistency loss to M for factors that are constant within an episode.

6. What was achieved, and what to remember

Achieved. A dream-trained controller that handles a 4× range of ball speeds uniformly at ~79% of a privileged oracle, transfers to never-seen colours, and needed zero real frames (the dream-only parameters match the real-selected ones). And two negative results with teeth: a mass-blind v1 controller does about as well, and the interaction-term test that was supposed to prove mass-use gives a false positive on it.

Remember.

• Grade per opportunity, not per episode, when a factor changes how often opportunities arise. Interceptions per floor visit made the mass comparison fair; per-episode counts would have shown fast balls “winning” by volume.
• Check the detector against the oracle. The oracle at 0.99–1.00 in every tercile is what licenses every other number in the table.
• A conserved quantity is not automatically conserved in a dream. At τ > 0 any latent without a restoring force diffuses. Test long dreams for the constancy of things that should be constant, and do it before training a controller inside them.
• Regression-based “does it use X” tests are confounded whenever X shifts the state distribution. Intervene instead.
• The cost of ignoring a factor can be small even when the factor is real. Slow balls forgive bad tracking. Whether an agent needs a causal cue depends on the task’s tolerance, not just on whether the cue is true.

Open threads. Train C at τ = 0.5 or with the colour subspace pinned, and re-run the tercile table; an interventional (repaint) test of the controller’s drive; a task where speed matters more (a smaller paddle, or a ball that is lost when missed) so that the value of the causal cue is larger.

Next: 04 — v2 results and lessons.
